This guide walks you through setting up your Brother printer to print check-in labels (Name Tags) for parents and children using the ChMeetings app.
Step 1: Enable Name Tag Printing in Event Settings
Before printing, ensure name tag printing is enabled:
-

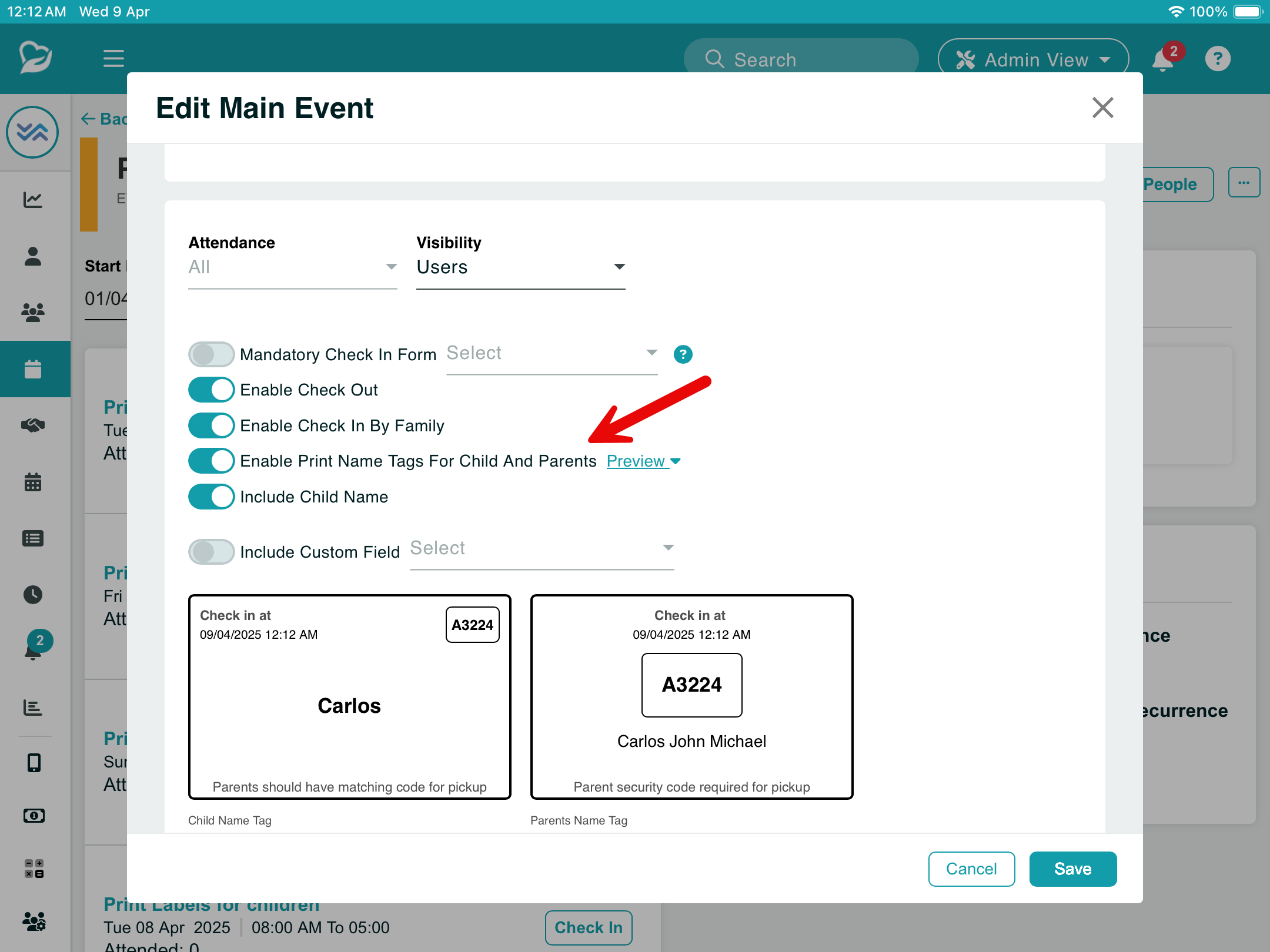

Go to Event Settings.
-
Locate the option: Enable Print Name Tags for Child and Parents.
-
Make sure the toggle is enabled.
Step 2: First-Time Check-In – Printer Setup
The setup process only appears during the first check-in. Printer settings are saved for future use. When you perform the first checkin:
-
A Printer Setup popup will appear.
-
The app will request permission to find devices on the network.
-

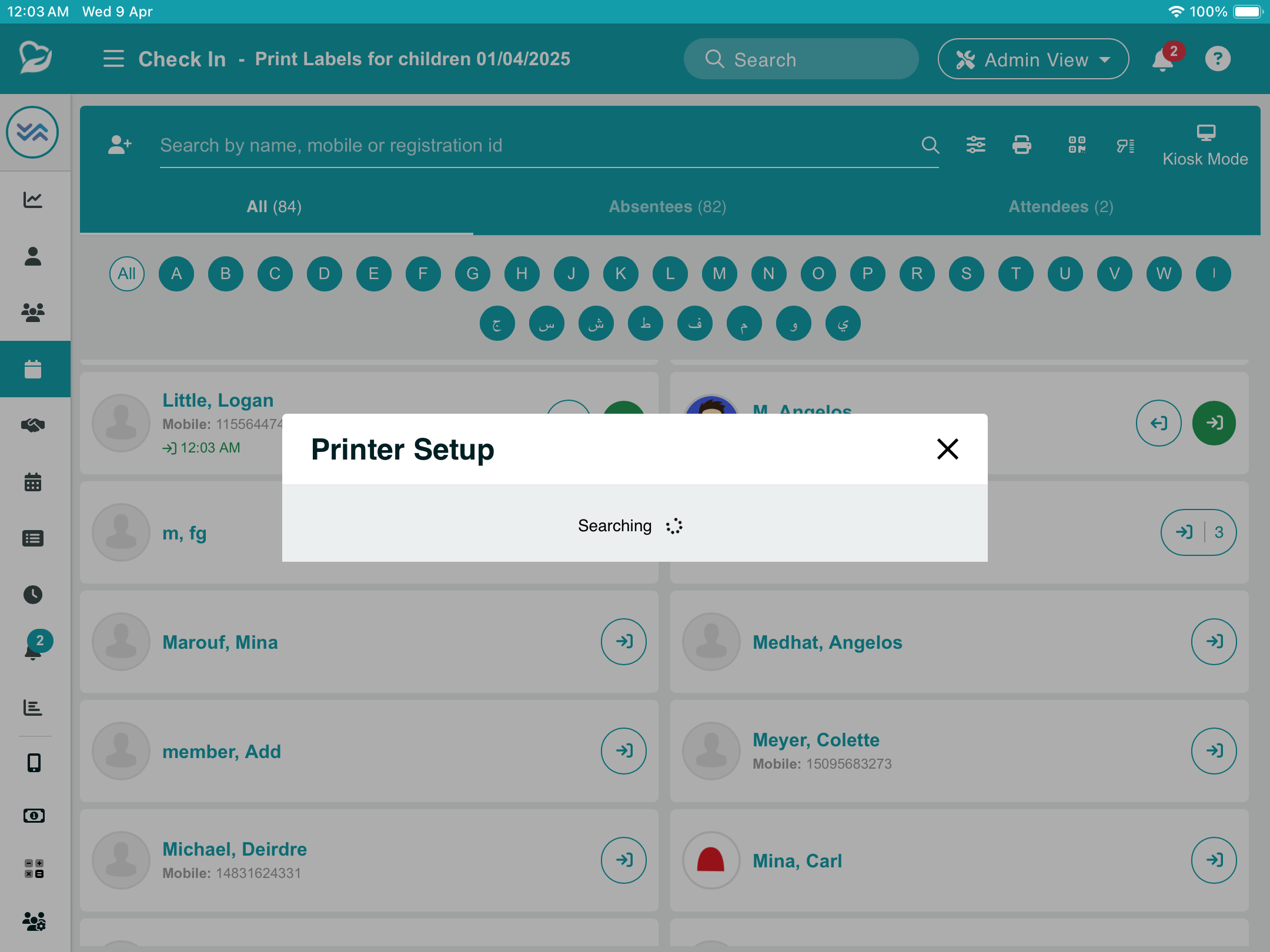

It will begin searching for available Brother printers.
-

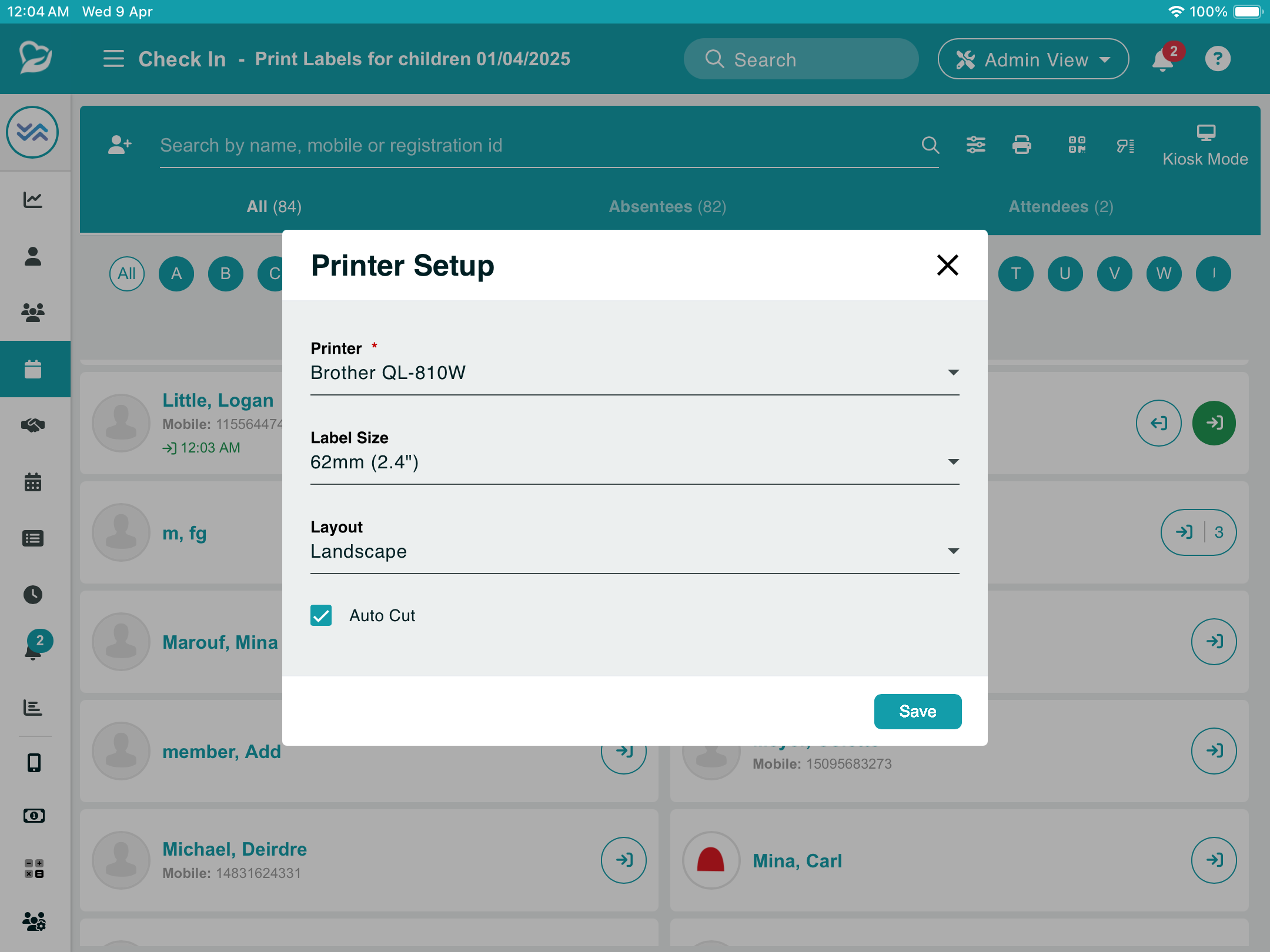

Once a printer is detected, the Printer Settings screen will open.
Recommended Print Settings
-
Page Size: 62mm x 100mm (2.4" x 3.9")
-
Layout: Landscape

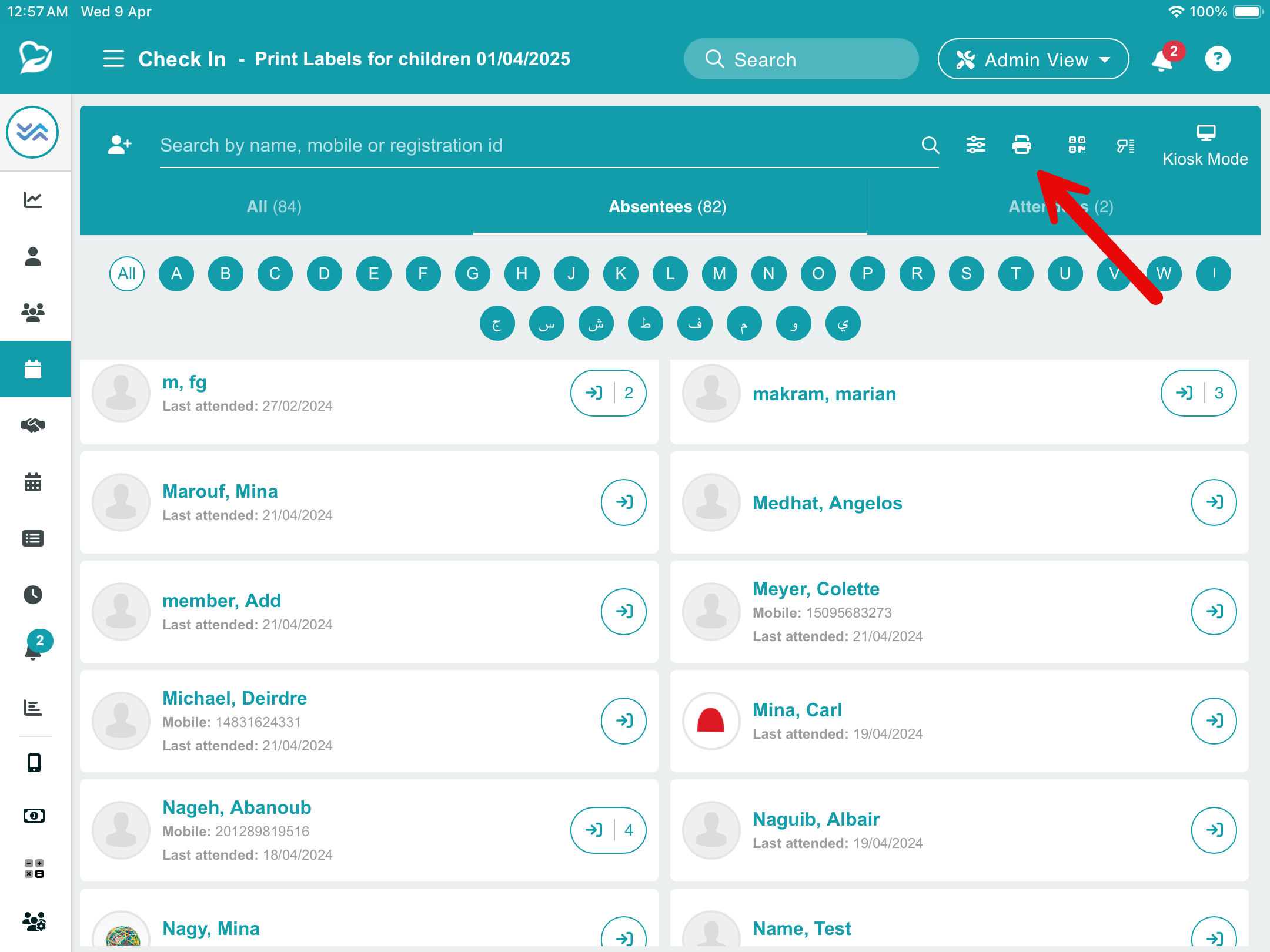

Modify Printer Settings Later
To change the Printer, Paper Size, or Layout:
-
On iPhone: Tap the top-right menu (⋯) in Printer Setup.
-
On iPad: Use the option beside the search box.
Troubleshooting Guide
1. Ensure the Printer is Powered On and Connected
-
Make sure the Brother printer is turned on.
-
Check that the WiFi LED is solid (not blinking).
2. Verify Network Connection
-
Your mobile device and printer must be on the same WiFi network.
-
If using Direct WiFi Mode, connect your device to the printer’s WiFi.
3. Check Local Network Permission (iOS Only)
-
On iOS, go to: Settings > Privacy > Local Network
-
Make sure ChMeetings is allowed to access the local network.
4. Restart WiFi or Printer
-
Toggle WiFi off and on on your device.
-
Restart the printer if it's still not found.
Incorrect Label Size?
If you see an error or misaligned print:
-
Make sure the printer is using a supported roll:
-
2.4" x 3.9" Name Badge Label
-
2.4" Continuous Feed
-
